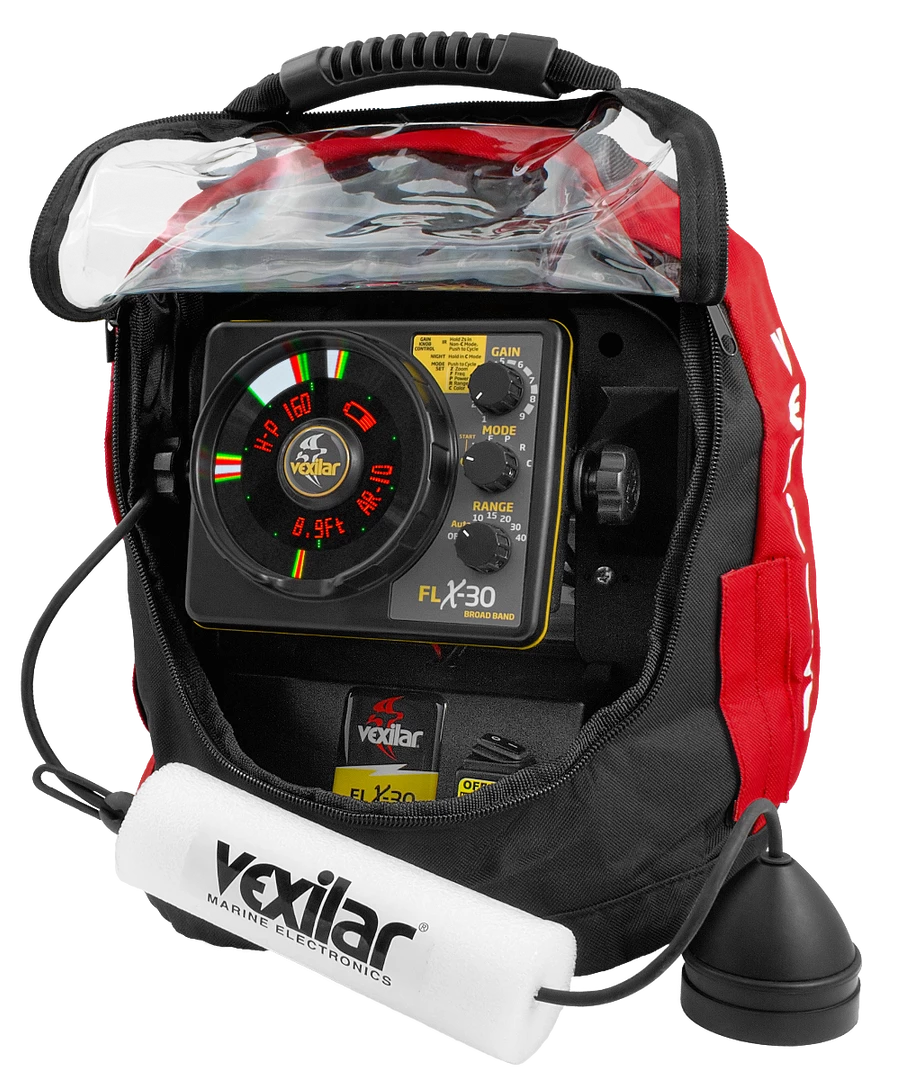

Electronics Vexilar FLX-30

Ultra Pack:

The features found in the FLX-30 read like the wish list of avid ice anglers starting with digital depth, Auto Range, Three zoom zones, battery status, FIVE color palettes to select from for maximum visibility, five foot depth range adjustments starting at 10 feet, Maximum range of 300, Day and Night display brightness settings, Low power options for fishing in super shallow water, a unique Weed Mode for better performance while fishing in weeds. And to top it all off, the unit even has its own Demo mode so you can show non-Vexilar fans how the system works with a lifelike fish catching simulation to watch. There are more features to the FLX-30 series than ever before inside a single flasher sonar system. All FLX-30 Ultra Packs come standard with the powerful ProView Iceducer transducer. The FLX-30 is specifically designed to perform with this specific Vexilar Iceducer.

The Ultra Pack carry case is the ultimate case design to hold the FLX-30. The Ultra Pack carry case is unique in that it has a totally enclosed 12 volt 9 amp hour lithium-ion battery that can power your Vexilar for days not hours. You use a master power switch to power up the system. The Ultra Pack has an oversize carry handle that can also hold your transducer float, four rod holder positions (one rod holder comes with the system) Three transducer support eye holes and a great cable management system. The Ultra Pack easily fits into a 5 gallon bucket and comes with would not be complete without a Vexilar tackle box and positions to mount other Vexilar accessories like the Flex-Light, Glo-Ring or more rod holders. BONUS! A FREE soft pack carry case comes with every UP30PV. This system is ready to use right out of the box!

FLX‑30™BB flasher/fish finder featuring:

• Seven frequencies from 160 to 300 kHz
• 140 interference rejection options (7 frequencies with 20 settings each)
• Target ID down to ¼”
• Digital depth display
• Day and night display brightness settings
• Battery status and low-battery alert
• Three power level settings
• Three zoom zones
• Three manual depth setting ranges to 300 feet
• Five color palette choices
• Long lasting brushless flasher technology
• Vexilar’s exclusive broad band Ice-Ducer® transducer and float
• 12 volt, 9 amp-hour, Vexilar Lithium battery
• Fully automatic charger
• Soft Pack carry case
• Adjustable rod holder
• Eye bolt for optional transducer support
• Master power switch
• External power posts for accessories
• Custom Vexilar tackle box
• Standard two-year limited warranty

• Frequency: 160 kHz, 180 kHz, 200 kHz, 225 kHz, 250 kHz, 275 kHz and 300 kHz
• Power output: 1,000 watts peak-to-peak (50 watts RMS)
• Display resolution: 525 segments
• Current draw: 300 ma at 12V DC
• Dimensions: 4.4″H x 6″W x 2.5″D
• Depth Range: Maximum 300 feet
• Weight: 7 lbs 4.5oz.

 Pro Pack:

Welcome to the age of the FLX series. The Vexilar® FLX-30BB Sonar Flasher Fish Finder Pro Pack brings a unique brushless data-transfer system for breakthrough flasher display with digital depth and Auto Ranging technology. The features found in the FLX-30 read like the wish list of avid ice anglers. Starting with digital depth, Auto Range, 2 zoom zones, battery status, 5 color palettes, 5′ depth range adjustments starting at 10′, maximum range of 300′, Day and Night display brightness settings, low-power options for fishing in shallow water, a unique Weed Mode for better performance while fishing in weeds, the FLX-30 somar unit is totally revolutionary in the world of winter flasher sonar technology. Performance, quality, innovation and reliability: welcome to the amazing FLX-30. This system offers great performance features in an ultra-durable case with a built-in gimbal bracket to support your flasher, complete with a 12V 9Ah lithium battery with charger. The FLX-30BB Pro Pack comes standard with the powerful Broad Band Ice-Ducer transducer. The FLX-30BB is specifically designed to perform with this specific Vexilar Ice-Ducer®. The Pro Pack comes with 1 rod holder but has positions to mount another with pre-tapped holes for mounting other accessories such as the Flex-light, Glo-Ring and beverage holder (not included). The Pro Pack comes with a screw-eye over-hole transducer holder or you can use the classic float to suspend your Ice-Ducer. The Pro Pack also has a Vexilar tackle box and easy-to-use cable management system, along with a soft-pack carrying case. This system is ready to use right out of the box.

• Digital depth
• Auto Range
• 2 zoom zones
• Battery status
• 5 color palettes
• 5′ depth range adjustments starting at 10′, maximum range of 300′
• Day and Night display brightness settings
• Low-power options for shallow water
• Weed Mode
• Demo mode
• 12V 9Ah lithium battery with charger
• Broad Band Ice-Ducer transducer
• Durable case with built-in gimbal bracket
• 1 rod holder
• Screw-eye over-hole transducer holder
• Tackle box
• Cable management system
• Soft-pack carrying case
